LILYGO® T-Higrow ESP32 BME280 talajnedvesség modul
ESP32 alapú WiFi és Bluetooth képes, akkumulátor töltásvezérlőt tartalmazó lapka. A taljszenzor kapacitív elven működik, ezzel nagyobb pontosság érhető el. A környezeti szenzor egy BME280.
LILYGO® T-Higrow ESP32 Soil Tester BME280 Garden Flowers Temperature Moisture Sensor WiFi Bluetooth Wireless Control Meter
T-Higrow Introduction
-
This capacitive soil moisture sensor differs from most of the resistive sensors on the market, using the capacitive sensing principle to detect soil moisture.
-
It avoids the problem that the resistance sensor is easy to corrode and greatly prolongs its working life.
Note:
-
Since BME280 already includes temperature and humidity sensor, it already includes the function of DHT11, we have removed the DHT11 sensor on the BME280 version to reduce costs.
Specifications
| MCU | ESP32 |
| FLASH | 4MB |
| Wi-Fi | 802.11 b/g/n |
| Xtensa dual-core 32-bit LX6 microprocessor |
| Bluetooth | BLE V4.2 |
| Onboard | Reset Button + Custom Button IO35 + ABS material shell + Jst 2pin 1.25mm connector |
| Version Optional | DHT11/ BME280 Version |
| Digital 16bit Ambient Light Sensor | SDA: IO25; SCL: IO26 |
| IC Name | BH1750 |
| Interface | I2C bus |
| Wide range and High resolution(1 - 65535 lx) 50Hz/ 60Hz Light noise reject-function |
Main function
- Soil Fertility detection
- Soil moisture detection
- Light intensity detection
- Ambient temperature and humidity 6. USB+200mA battery
- Low power sleep
Technology Support [Github]
If you need technical support please check the link to find more details.
More information
TTGO-HiGrow
3D Shell Print Download:
https://www.thingiverse.com/search?q=higrow&page=1&type=things&sort=relevant
2. Pin Diagram
BME280

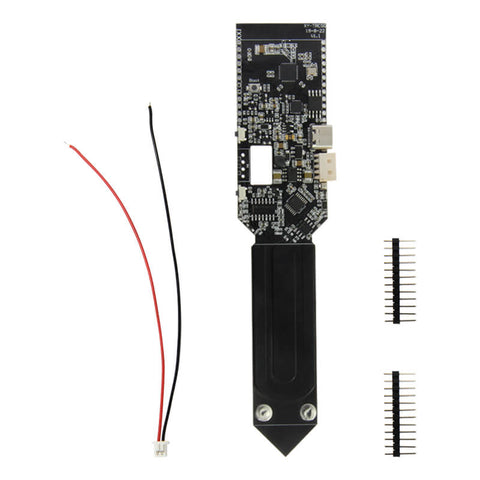

T-Higrow BME280 CH9102 Options
- 1 x T-Higrow BME280
- 1 x Power cable
- 2 x Pin
